A quiet or distorted handset is easy to reject as a damaged speaker, and a ringtone that plays can hide a silent receiver. For a phone speaker test, write the receiver, the loudspeaker, media playback, and the call on separate lines, then accept the unit or refer it from the line you heard.
The sheet on this page is blank. It records what you heard under the conditions you write down. A chamber measurement is a different job, and this page does not provide one.
A phone speaker test at intake writes four routes on one sheet. Play the ringtone or alerts, play a local media file, place a call with speakerphone off so the receiver is in use, and place a call with speakerphone on so the loudspeaker is in use. Apple’s speaker support page, published March 16, 2026, says to turn Silent mode and Do Not Disturb off, remove cases and films, and check the speaker opening and, on iPhone, the receiver. If the ringtone makes sound and a speakerphone call still has no voice, static, or crackling, Apple says the network or reception could be the issue. Samsung’s US diagnostics page, retrieved October 11, 2026, says available tests vary by model and software. Copy the on-screen test name, or leave that cell blank when no audio test is listed. Keep decibel cutoffs, distortion percentages, and chamber certificates off this sheet.
| Route | What you play | What you write |
|---|---|---|
| Alerts | Ringtone and Alerts slider, after Silent mode and Do Not Disturb are off | Sound, no sound, or a dimmed speaker control |
| Media | A file stored on the handset | Heard, quiet, distorted, or not played, plus the volume position you used |
| Receiver | A phone call with speakerphone off | Voice clear, quiet, distorted, crackle, or not placed |
| Loudspeaker | The same call with speakerphone on | Voice clear, quiet, distorted, crackle, static, no voice, or not placed |
File the finished sheet with the other per-IMEI results in the phone intake and diagnostic workflow.
What do you clear before you judge the sound?
Clear the controls and the openings before you treat a quiet handset as a hardware referral. Apple’s page, published March 16, 2026, gives this order for no sound or distorted sound.
Turn Silent mode off. On a device with a Ring/Silent switch, move the switch toward the display so orange is not showing. On an iPhone with an Action button, or on an iPad, open Control Center and turn Silent mode off. Then open Settings, tap Focus, tap Do Not Disturb, and turn Do Not Disturb off.

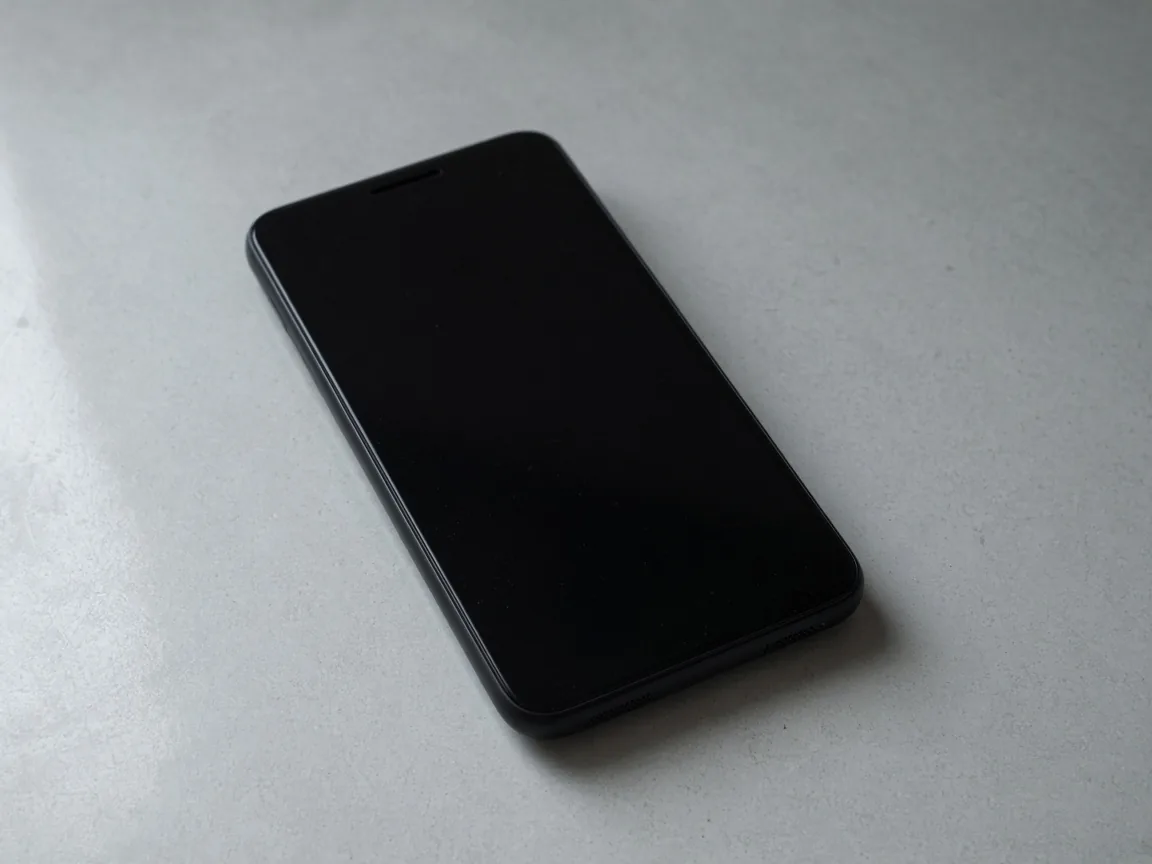

Remove screen protectors, films, and cases. Look at the speaker opening for dirt or a blockage. On iPhone, look at the receiver as well. If you need to clean an opening, use a small soft-bristled brush that is clean and dry.
Takeaway: Write the mute state and whether the case was still on. A later reader needs those lines before the route results mean anything.
How do media playback and a call differ?
The ringtone, a media file, and a call can use different outputs. Hear each one and keep the notes apart.
Open Settings, tap Sounds, or Sounds & Haptics, and drag the Ringtone and Alerts slider back and forth. That is the alerts route. A song or video already stored on the handset is the media route. Write the volume position you used for that file. Leave the media result off the alerts line.
For the call, use a phone call on the handset. Use the speakerphone control on the call screen. First leave it off and listen at the receiver. Then turn it on and listen at the loudspeaker. Write on or off for each listen. Apple’s March 16, 2026 page says that if you already hear sound from the ringtone check, and a call with speakerphone still has no audio, static, or crackling, the network or reception could be the issue. In that case, try the call again later or from another place, and write the second result. Hold the loudspeaker referral until that repeat is done.
If a wired headset or a Bluetooth audio device is connected, disconnect it and repeat the four routes. This sheet is for the handset. Write that you disconnected the other device.
Takeaway: A clear ringtone and a bad speakerphone call are a call-route note. Repeat the call before you refer the loudspeaker.
What can you copy from a Samsung diagnostics menu?
Copy the name the phone actually shows. Samsung’s US support page, retrieved October 11, 2026, says menu names, settings, and screen layouts vary by model and software version. In Samsung Members, diagnostics can be opened from the Discover tab or the Support tab, then Phone diagnostics. You can run one test or Test all. The page says the available tests vary by model, and many tests need you to follow the on-screen steps. If a test fails, the app may offer suggestions.
The same page says Device care diagnostics are available on Galaxy devices running Android 12 or later, under Settings, then Device care. It describes battery, storage, memory, and security checks there. It does not publish one speaker-test name for every Galaxy model.
Write the test name and the on-screen result when the menu lists an audio test for that model and software. When it does not, leave the OEM cell blank. The four route rows still have to be filled from what you heard.
Takeaway: A blank OEM cell means the menu did not show an audio test. It does not fill the receiver or loudspeaker row for you.
When do you retest, accept, or refer?
Use the row that matches the sheet in front of you. The next step is another listen, an accept limited to this audio check, or a referral. The table has no decibel cutoff and no part number.
| What the sheet shows | What you can say | Next step |
|---|---|---|
| Silent mode or Do Not Disturb was on, and the ringtone was quiet | The mute control was on during that listen | Turn both off, move the Ringtone and Alerts slider, and fill the route rows again |
| A case, film, or protector was still on, and the sound was quiet or muffled | A cover was still on the handset | Remove it, look at the openings, and repeat the listen |
| The speaker opening, or the iPhone receiver, has visible debris | The opening was not clear | Clean it with a clean, dry, soft-bristled brush, as Apple’s March 16, 2026 page describes, then repeat |
| Ringtone heard; receiver call quiet or distorted; speakerphone call clear | The receiver route and the loudspeaker route differ | Record both. Refer the receiver line if a second listen, with a clear opening, is still quiet or distorted |
| Ringtone heard; speakerphone call has no voice, static, or crackling | Apple says the network or reception could be the issue in this situation | Repeat the call later or from another place before you refer the loudspeaker |
| Ringtone silent, or the speaker control on the Ringtone and Alerts slider is dimmed, after mute and the case are cleared | Apple says the speaker might need service | Refer the unit for assessment and leave the part name blank |
| Media file quiet or distorted, and the ringtone was heard | You have two observations | Keep them on separate rows |
| A route row is still blank | That route was not heard | Leave it blank. Hold acceptance of this audio check until the row is filled, unless your written terms waive it |
| All four routes were heard, and none was quiet, distorted, crackling, or silent, after the mute and opening checks | You have four observations under the conditions on the sheet | Accept the unit on this audio check |
Takeaway: Accept this audio check only when all four route rows are filled and clear. A single quiet line chooses a retest or a referral for that line.
What goes on the blank audio path record?
Copy one record per handset. The lines below are empty on purpose.
| Field | What to enter |
|---|---|
| Device identifier | IMEI or serial from that handset |
| Model and OS | Text shown on the device |
| Silent mode | On, off, or no switch found |
| Do Not Disturb or Focus | On or off |
| Case, film, protector | Still on during the listen, or removed |
| Speaker opening | Clear, debris noted, or not checked |
| Receiver opening | Clear, debris noted, not checked, or not an iPhone |
| Headset or Bluetooth audio | Disconnected before the listen, or still connected |
| Ringtone and alerts | Sound, no sound, speaker control dimmed, or not played |
| Media playback | File or handset tone, volume position, and heard, quiet, distorted, or not played |
| Call, speakerphone off | Voice clear, quiet, distorted, crackle, or not placed |
| Call, speakerphone on | Voice clear, quiet, distorted, crackle, static, no voice, or not placed |
| OEM menu test | Exact test name and on-screen result, or blank |
| Call repeat | Time and place, result, or not repeated |
| Decision row | The matching row from the table above |
| Disposition | Accept this audio check, retest, or refer, and name the route |
| Written terms | Your receiving rule, or none written |
Takeaway: A finished record names the four routes, the mute and opening checks, and one disposition.
When this does not apply
This page is the intake record for four handset routes.
- Chamber readings, distortion percentages, and a decibel pass mark are a different job. Leave them off the sheet.
- Water-ejection steps and hidden test codes are outside this record. The only cleaning step taken from Apple’s March 16, 2026 page is a clean, dry, soft-bristled brush on a blocked opening.
- A complaint that the other person cannot hear you is a microphone question. It does not fill the receiver or loudspeaker rows.
- Apple’s page uses a FaceTime call for iPad and iPod touch, and it says FaceTime is not available in every country or region. The call rows here are phone calls on a handset.
- On a phone that is not an iPhone, Apple’s receiver-opening instruction does not apply. Leave that opening line as not checked unless your own terms name an opening to inspect. The speakerphone-off call is still the receiver route.
Method and sources
This guide synthesizes Apple’s support page “If you hear no sound or distorted sound from your iPhone, iPad, or iPod touch speaker” (published March 16, 2026) and Samsung’s US support page “Check your Samsung Galaxy device status and run diagnostics” to structure the four-route audio intake record and disposition table.
The editorial policy explains how guides separate source facts from suggestions, the fact-checking policy covers corrections, and the AI-use policy describes assistance disclosures.
Last substantive update: October 13, 2026.
Sources
- If you hear no sound or distorted sound from your iPhone, iPad, or iPod touch speaker — Apple Accessed October 11, 2026.
- Check your Samsung Galaxy device status and run diagnostics — Samsung Accessed October 11, 2026.
